#1 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Looking for a couple of items
1 - A wireless keyboard that has a touch pad (like on a laptop, don't know the actual term) incorporated into it.
2 - a cheap graphics card that will allow me to run two monitors from my PC Preferably UK sites. |
![]() |
![]() |
#2 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
http://www.ebuyer.com/product/135103 - Keyboard
http://www.ebuyer.com/product/182095 - GFX Card That has a DVI and an HDMI output. You can buy simple converters for HDMI to DVI or vice-versa if you need to. |
![]() |
![]() |
#3 |
▬▬ஜ۩۞۩ஜ▬▬
Posts: 16,011
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
|
![]() |
![]() |
#4 | |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Quote:
I might be being ignorant here but I'm not sure on my outputs. I currently have my PC connected to a HD TV, but that has inputs to use a "normal" PC to Monitor cable. I wanna be able to run the HD tv and the old monitor together. |
|
![]() |
![]() |
#5 |
Unnecessarily awesome
Posts: 8,323
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
If the video card you have (or going to buy) has two outputs, that shouldn't be a problem.
|
![]() |
![]() |
#6 | |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Quote:
![]() You can convert the DVI to a standard VGA with one of these: ![]() Either way, once you get the right cables, you'll have options to run the same desktop on both screens as a clone, or stretch your desktop to go over both screens and do different things on each screen. |
|
![]() |
![]() |
#7 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Once again I'm gonna show myself up for my lack of tech knowledge...
Hasney, does that gaphics card you linked me to have 2 outputs? I know you touched on it but what's the difference/benefits of cloning/stretching? Would it be hard to install? Do I need a decent spec PC to get this going? |
![]() |
![]() |
#8 |
Unnecessarily awesome
Posts: 8,323
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Yes, the card Hasney linked has two outputs.
Cloning = having the same desktop on either screen (what you see one one is what you'll see on the other. Stretching = you can think of it like taking one edge of your current monitor and extending it. You can run Microsoft Word on one screen and have Firefox/IE/whatever open in the other. Easy to install. Your computer can probably handle it, but just in case, what are your specs now? |
![]() |
![]() |
#9 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
I have no idea tbh. Pretty bog-standard, off the shelf package.
My current set up (PC connected to HDTV) is great if I am watching a tv show or film on the net but it means that whilst I'm online I can only watch one of 5 terrestrial channels through Pic-In-Pic. I wanna be able to shift say an I.E. window over to a normal monitor so that I can have the wider choice of digital channels. Sounds like a job for a stretched screen? |
![]() |
![]() |
#10 |
Unnecessarily awesome
Posts: 8,323
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Yes, it's what a stretched screen is for.
|
![]() |
![]() |
#11 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
OK, I ordered the graphics card...so I'm gonna need to ordr cables and converters, right?
Just run it by me what I need again. A DVI to VGA converter, which presumably connects to the card output allowing me to use a standard VGA cable. A HDMI to DVI converter, but then also something to convert the DVI to standard VGA? I took a look in PC World today but got a little confused (and their stuff seems very expensive). If you could link me to what I need to order than would be much appreciated. |
![]() |
![]() |
#12 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
OK, we're going 2 VGA inputs. Soooo....
HDMI to VGA: http://cgi.ebay.co.uk/GOLD-1-5M-HDMI...item3efdfba74e (heh, didn't realise you could do that) £2.14 DVI-I to VGA: http://cgi.ebay.co.uk/1-8m-DVI-I-to-...item3a57f3fc98 £3.95 Should be all you need. |
![]() |
![]() |
#13 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Thanks for the super quick response. Are those definately the right orientation? Male/female wise I mean.
|
![]() |
![]() |
#14 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
They should be. They defo are for the card and the female side is normally on monitor/TV, so check your inputs before you buy.
|
![]() |
![]() |
#15 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Inputs on both monitors are female as is the output currently from my PC.
|
![]() |
![]() |
#16 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Then the cables are all good
![]() |
![]() |
![]() |
#17 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
That DVI to VGA cable you linked me to looks like it'll be female DVI and male VGA. Is that right?
|
![]() |
![]() |
#18 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Nada, both male. The female is on the gfx card.
![]() |
![]() |
![]() |
#19 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Cool. Couldn't tell if they were pins or holes on the DVI end.
|
![]() |
![]() |
#20 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Card came today...it has a VGA output as well as the DVI and HDMI so I didn't need one of those cables
![]() Hopefully last question...do I put this card in as well as the existing graphics gard or in place of? |
![]() |
![]() |
#21 |
Unnecessarily awesome
Posts: 8,323
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Replace the current one with the new one.
|
![]() |
![]() |
#22 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
So much for easy install...

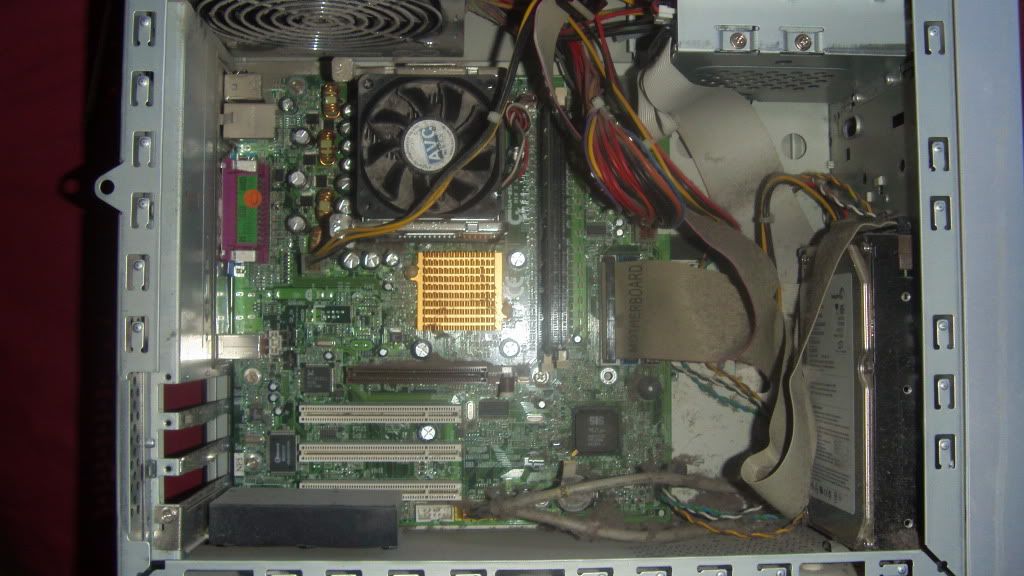

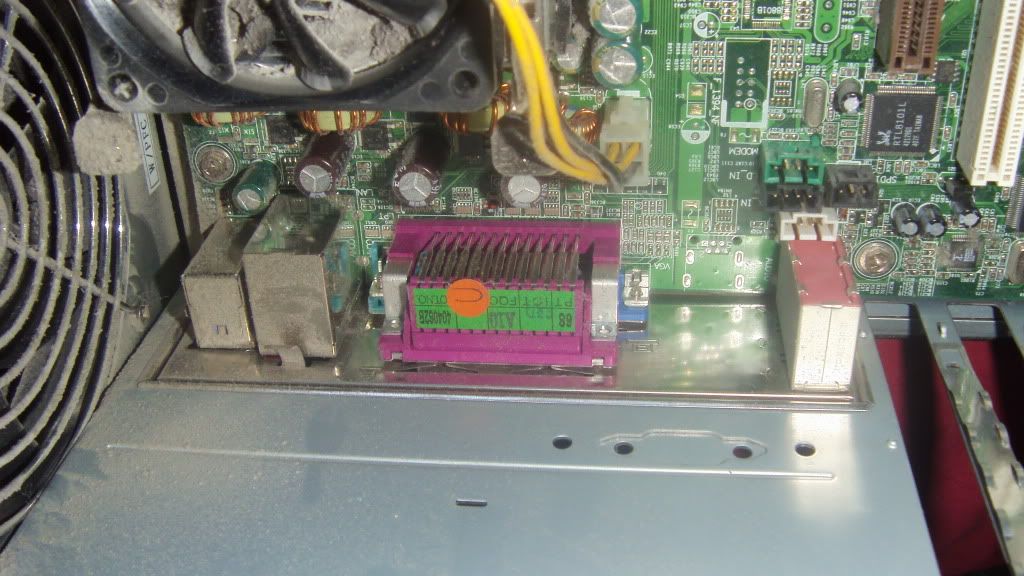

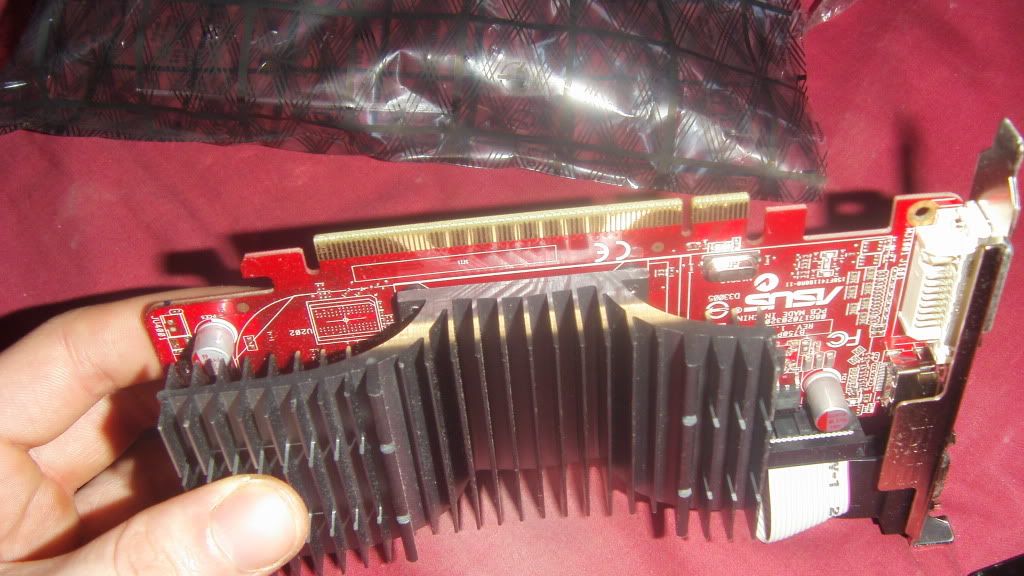

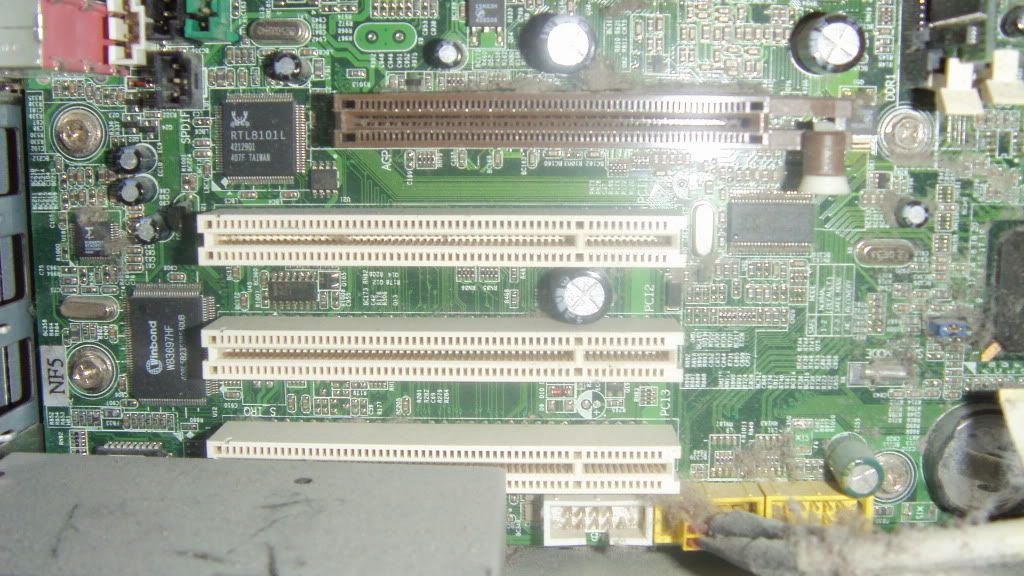

Can't find a slot big enough for the card and can't locate the original graphics card. Pics for reference: Back of PC ![]() Current outputs for monitor (don't tell me I could have used that male output to do dual screen?) ![]() Inside PC ![]() Back of monitor panel ![]() Available card slots ![]() Card ![]() |
![]() |
![]() |
#23 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Nah, that male port is a serial port.
But yeah, your PC doesn't have a PCI-E port which is what that GFX card needs. I honestly didn't realise it would be an issue as PCI-E has been the standard for 4 years now. You'd actually need this card: http://www.ebuyer.com/product/169448 and that one would go in the brown slot. |
![]() |
![]() |
#24 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
4 years you say? That unit was bought in 2003.
Just hope Ebuyer have a returns policy!! |
![]() |
![]() |
#25 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Returns/refund seems easy enough, TWICE the price though!!
![]() |
![]() |
![]() |
#26 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Yeah, AGP cards are a bitch price wise these days. I'm guessing it's probably because they don't sell as many as they used to, but still the difference is immense.
|
![]() |
![]() |
#27 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
As in better or worse? Tbf I thought I'd be spending up to £100 to get it all sorted, so it's not too bad.
Cables arrived today...shame I don't need one of em and the other is useless til Monday. |
![]() |
![]() |
#28 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
The cheaper card that you can't use is actually a direct replacement (a generation up) from the card you need to now get. You won't notice it though as it's for mainly desktop use and the extra memory in the card you would make up for a it a bit anyways.
Oh, and forgot to say, looks like your existing card is on the motherboard instead of in a port, all you'll need to do is prior to installing the new card, go into the BIOS screen (usually F2 or Delete just after your PC turns on) and find a setting to turn the card off. It's more of a precaution though, your system may end up booting fine even with the motherboard card turned on. |
![]() |
![]() |
#29 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Finally got up and running. Had you use my staright HDMI to HDMI cable though which has left me with no DVD player.
Couple more things though... I have the audio from my PC run through my TV but this doesn't seem to be working with the new set up. Any ideas? How do I get the taskbar to move screens? I have set my smaller screen as the primary screen but the bar stays on the LCD tv side!? |
![]() |
![]() |
#30 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
How was the audio hooked up before? There may be different audio ports for the HDMI input on your TV.
As for your other problem, pretty sure you can use the Catalyst Control Centre software to swap screens. If you've not got it, download it (along with updated drivers) from www.ati.com |
![]() |
![]() |
#31 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
It was just hooked up audio out to audio in I think.
|
![]() |
![]() |
#32 |
BAY BAY
Posts: 36,524
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Yeah, that's what I do. But there are 2 audio ins on my TV, one for VGA and one for HDMI.
|
![]() |
![]() |
#33 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Hmmmmmm. I'll have to pull the TV down off the wall...again.
|
![]() |
![]() |
#34 |
Unnecessarily awesome
Posts: 8,323
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
To change which screen has the taskbar, go to the screen where you change screen resolutions. It should have a diagram with two screens on it with a 1 and 2 on the rectangles. Choose the monitor/TV you want to have the taskbar on and make it the primary display.
|
![]() |
![]() |
#35 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
I've already set the primary screen where it should be. All of the desktop items have moved across and screens open on it...but the taskbar remains on the other screen.
|
![]() |
![]() |
#36 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Still haven't solved the audio/taskbar problems.
Also, on the cable front. The HDMI to VGA cable said this in the description: This HDMI to VGA HD15 (Male) connects your HDMI enabled devices, HDTV (not from your PC or Laptop) to your monitor. HDMI enabled devices include, Playstation systems, HDTV receiver, Projector, A/V Receiver, DVD player, etc to your monitor. Oh well. Guess I better buy a converter. |
![]() |
![]() |
#37 |
Mad
Posts: 26,228
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
Make sure the taskbar isn't locked by right clicking on it and check unlock, then drag it to the other screen.
|
![]() |
![]() |
#38 |
Feeling Oof-y
Posts: 17,148
![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
That's one issue down.
Now to sort the audio and find a cheap converter... |
![]() |
